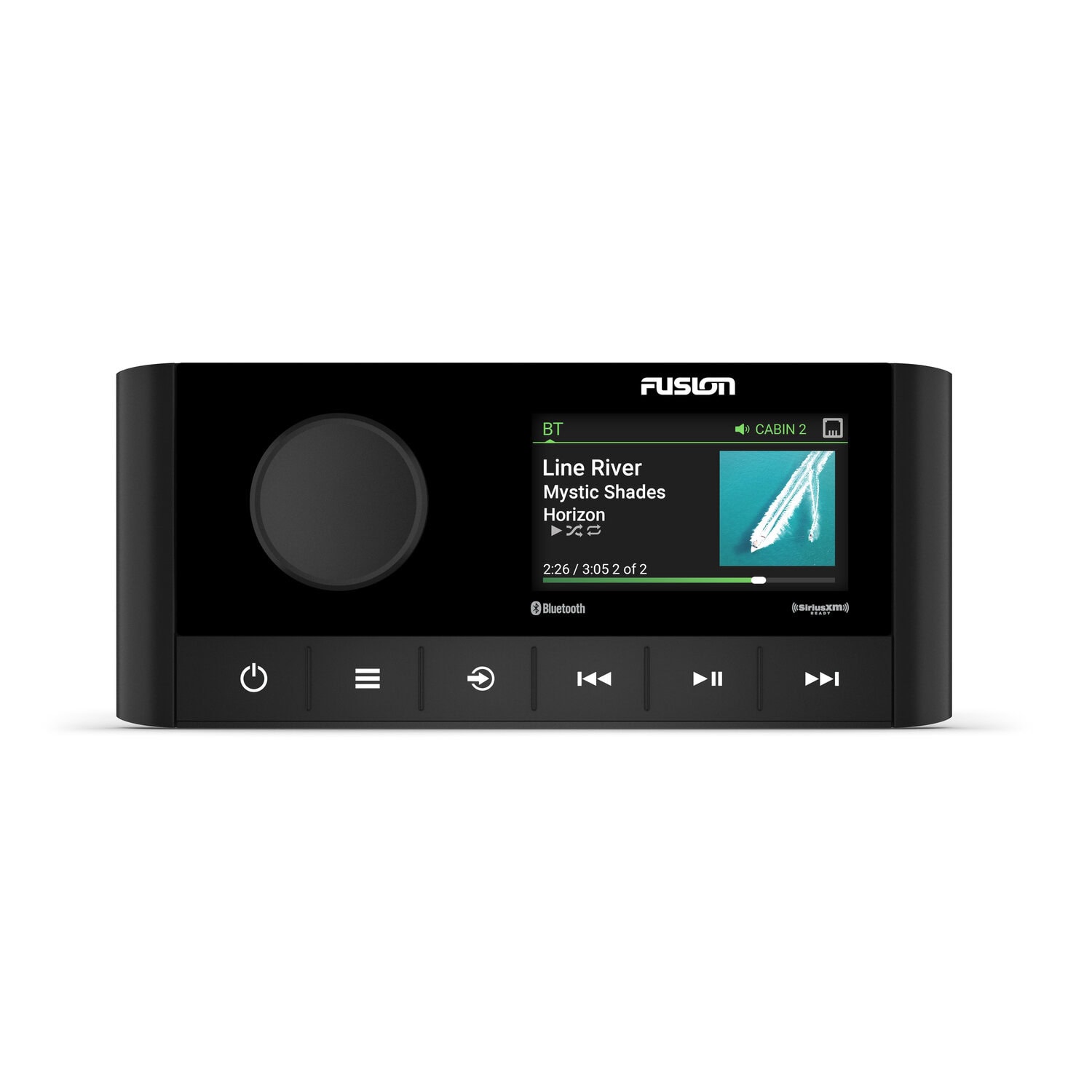

Fusion RA210 Marine Stereo
With Bluetooth® and DSP
The MS-RA210 marine stereo from Fusion® is a stylish addition to your boat. Incorporating some of the Apollo™ Series’ key features, the stereo includes built-in digital signal processing (DSP) technology, modern design aesthetics and advanced source options.
Custom audio profiles for each zone on your boat deliver superior quality audio.
Enjoy the colour album art and metadata that display information of the current track playing.
Built-in Class-D amplifier delivers higher efficiency and greater output.
Multi-Zone™ Technology gives you control of two separate audio zones.
Control your music from a compatible multifunction display (MFD)1, smart device or Garmin watch.
Designed and engineered for the harsh marine environment, the MS-RA210 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
With your stereo connected to an NMEA 2000® network with an appropriate speed sensor installed, selecting Speed vs. Volume from the stereo’s settings menu enables audio volume to be automatically adjusted based on your boat’s speed. Faster = louder; slower = lower volume. Compatible speed sources include speed over ground, speed through water, engine RPM or wind speed.
A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
Setting up your DSP profiles is made simple with the free Garmin Audio app2. With just a few steps on your compatible smartphone, you can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.
Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.
| General | |
|---|---|
| Dimension | 6.18″ x 2.68″ x 4.99″ (156 x 68 x 126.6 mm) |
| Weight | 0.77 lbs (350 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Display | 2.7” optically bonded colour LCD |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Current (max) | 15 A |
| Multi-language interface | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish |
| Audio | |
|---|---|
| Amplifier | Class-D (4 ohm) |
| Electrical features | |
|---|---|
| POWER INPUT | 10.8 – 16 VDC |
| Compass safe distance | 5.9″ (150 mm) |
| Stereo features | |
|---|---|
| Peak power | 200 W |
| Rated power output (4 Ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing (DSP) | Yes (with custom DSP profile setup using Fusion-Link™ app) |
| Control | Yes (MFD, smart device and Garmin watch) |
| Multi-Zone™️ technology | 2 zones |
| Bluetooth® wireless technology | Yes |
| ANT® wireless technology | Yes |
| SiriusXM-ready | Yes |
| DAB+ ready | See Additional |
| Supports NRX wired remote | Yes |
| Software updates | USB |
| Sources | |
|---|---|
| Supported sources | AM, FM, Bluetooth®, USB audio, iPhone®, iPod®, AUX x1, MTP SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) DAB+ ready (available in Europe and Australia only) |
| Networking & Connections | |
|---|---|
| Auxiliary inputs (RCA) | 1 |
| NMEA 2000® ports | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| USB 2.0 ports | 1 |
| SiriusXM ports | 1 |
| Antenna ports | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line out | 2 (L + R per zone, requires external amplification) |
| Subwoofer out | 2 (1 mono output per zone, requires external amplification) |
| Wireless frequencies/protocols | Bluetooth®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
| ANT® wireless range | Up to 10 ft (3 metres) |
| Bluetooth® wireless range | Up to 10 metres (30 ft) |
| Additional | |
|---|---|
| Additional | DAB+ requires Fusion® DAB+ module (sold separately). |
