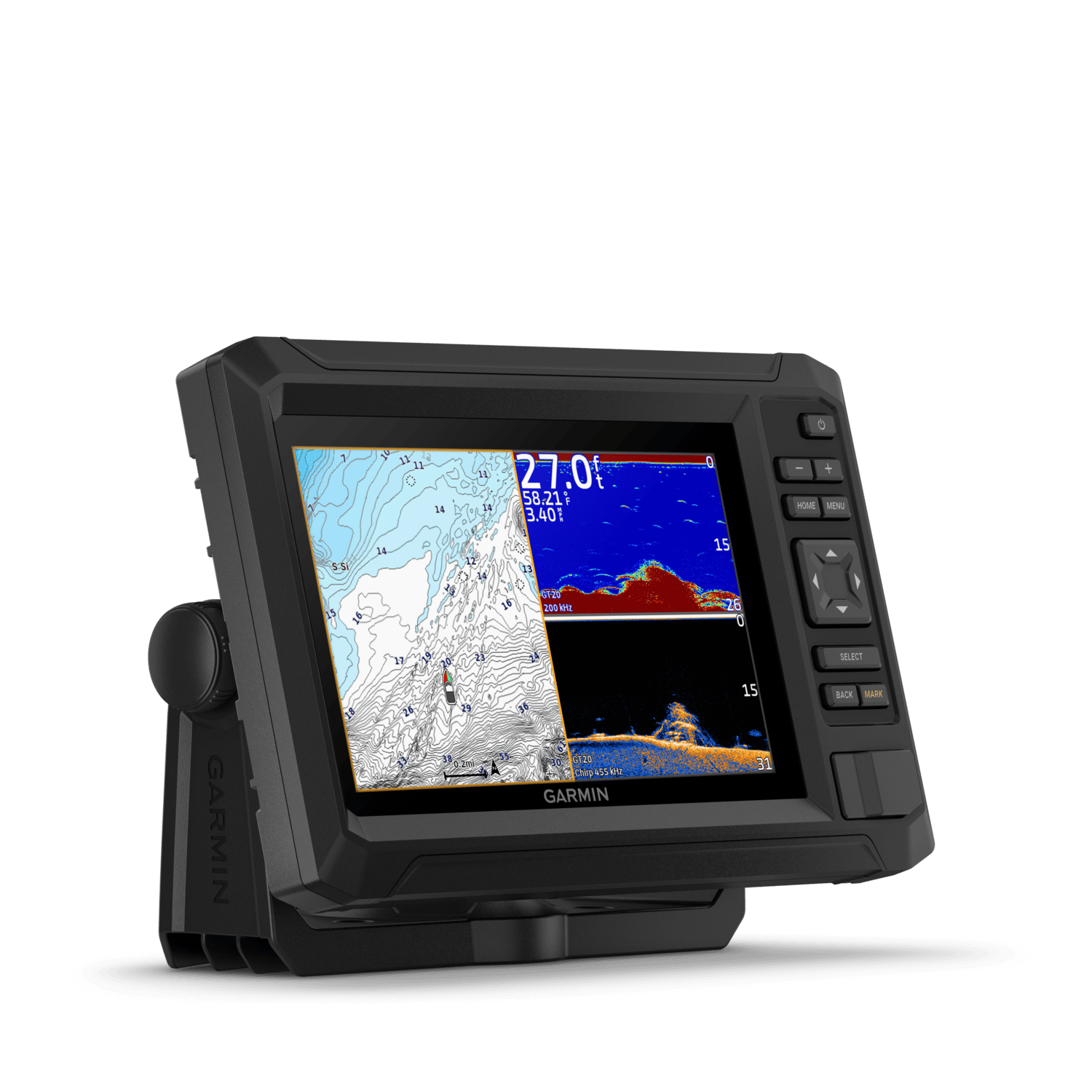

ECHOMAP™ UHD2 7″ Chartplotter
75cv with GT20-TM Transducer and Garmin Navionics+ Australia & New Zealand Mapping
With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
Know the waters you’re in as if you grew up fishing them by using built-in BlueChart g3.
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5″ and 7″ models can wirelessly share information — such as sonar, waypoints and routes — with them.
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data and more2.
| General | |
|---|---|
| Dimension | 9.1″ x 5.6 x 2.6″ (23.2 x 14.3 x 6.7 cm) |
| Weight | 1.5 lbs (0.7 kg) |
| Water rating | IPX7 |
| Display Type | WVGA, TN |
| Display Size | 6.1″ x 3.4″ (15.5 x 8.7 cm) |
| Display Resolution | 800 x 480 pixels |
| Mounting Options | Bail or flush |
| Input | Keyed |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
| Waypoints | 5000 |
| Track points | 50000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| GPS | Yes |
| Galileo | Yes |
| Has built-in receiver | Yes |
| Receiver | 5 Hz |
| Supports WAAS | Yes |
| Built-in maps | |
|---|---|
| Built-in Auto Guidance+ | Yes (downloadable via ActiveCaptain app) |
| Garmin Navionics+ Inland & Coastal | Yes (see Additional) |
| Garmin Navionics+™ (Coastal) | Yes (see Additional) |
| Garmin Navionics+ (Inland) | Yes (see Additional) |
| BlueChart (coastal) | Yes (see Additional) |
| Tide tables | Yes (see Additional) |
| Optional map support | |
|---|---|
| BlueChart g3 | Yes |
| BlueChart g3 Vision | Yes |
| LakeVü g3 | Yes |
| LakeVü g3 Ultra | Yes |
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard Mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Chartplotter Features | |
|---|---|
| ActiveCaptain Mobile Planning Compatible | yes |
| Electrical features | |
|---|---|
| POWER INPUT | 9 to 18 Vdc |
| Typical current draw at 12 Vdc | 1 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18W |
| Sonar Features | |
|---|---|
| Displays sonar | Yes |
| Power output | 500W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| Networking & Connections | |
|---|---|
| 4-pin transducer ports | 1 |
| Garmin Wi-Fi network (local connection) | Yes |
