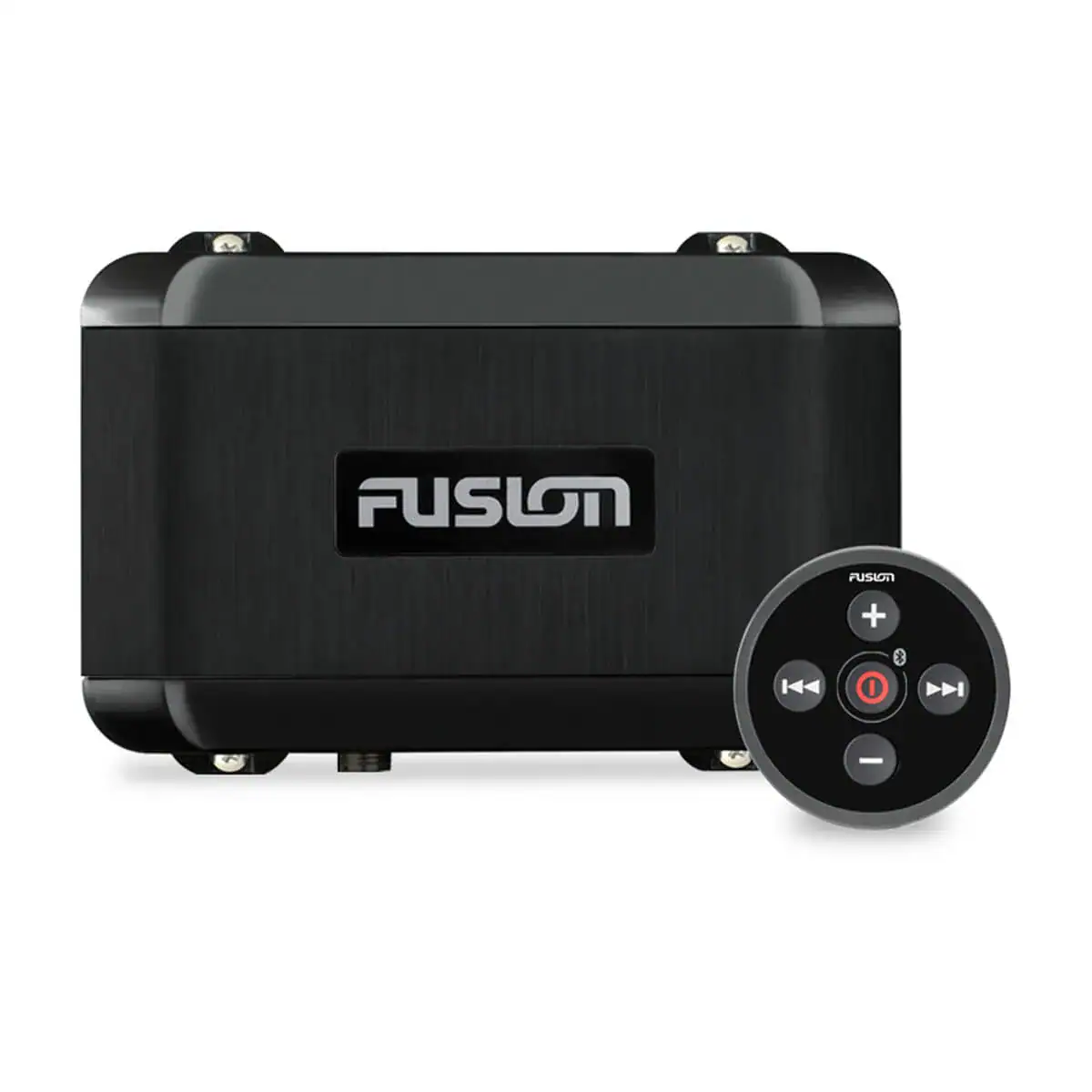

Fusion BB100 Black Box
There is no need to compromise on quality audio entertainment due to limited helm space with the value packed Fusion MS-BB100 compact black box entertainment solution.
Compact form factor allows for easy installation on your boat.
Control the BB100 using the included IPX7 wired remote control.
Built-in Class-AB amplifier delivers efficiency with reduced distortion.
Multi-Zone™ technology gives you control of 2 separate audio zones.
Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.
Designed to save space at the helm, the compact design of the MS-BB100 allows it to be mounted in out-of-way places such as storage lockers, inside helm consoles and other concealed compartments.
An IPX7 rated wired remote control is included in the box for you to control the MS-BB100. You can mount the wired remote with a conventional flush finish or integrate it into the helm for a premium flat finish.
Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.
Enjoy high quality digital radio with DAB+ radio1.
| General | |
|---|---|
| Dimension | Black Box: 6.1″ x 3.7″ x 2.63″ (155 x 94 x 60 mm) Remote: 2.56″ x 2.56″ x 2.13″ (65 x 65 x 54 mm) |
| Weight | 1.23 lbs (560 g) |
| Water rating | Black Box: IPX3 (when properly installed) Wired Remote: IPX7 (front panel only, when properly installed) |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Current (max) | 15 A |
| Audio | |
|---|---|
| Amplifier | Class-AB (4 ohm) |
| Electrical features | |
|---|---|
| POWER INPUT | 10.8 – 16 VDC |
| Compass safe distance | 5.9″ (150 mm) |
| Stereo features | |
|---|---|
| Peak power | 200 W |
| Rated power output (4 Ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Control | Yes (MFD, smart device and Garmin watch) |
| Multi-Zone™️ technology | 2 zones |
| Bluetooth® wireless technology | Yes |
| ANT® wireless technology | Yes |
| DAB+ ready | Yes |
| Supports NRX wired remote | Yes |
| Software updates | USB |
| Warranty | 1year |
| Sources | |
|---|---|
| Supported sources | AM, FM, Bluetooth®, USB audio, iPhone®, iPod®, AUX x1, AOA DAB+ ready (available in Europe and Australia only) |
| Networking & Connections | |
|---|---|
| Auxiliary inputs (RCA) | 1 |
| NMEA 2000® ports | 1 |
| NMEA 2000® LEN | 1 (50 mA) |
| USB 2.0 ports | 1 |
| Antenna ports | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line out | 2 (L + R per zone, requires external amplification) |
| Subwoofer out | Zone 1 (requires external amplification) |
| Wireless frequencies/protocols | Bluetooth®: 2.4 GHz @ +1.9 dBm nominal ANT®: 2.4 GHz @ +1.9 dBm nominal |
| ANT® wireless range | Up to 10 ft (3 metres) |
| Bluetooth® wireless range | Up to 10 metres (30 ft) |
In The Box
